Combinational building blocks form the backbone of digital circuit design, enabling the creation of complex
systems from basic components. These building blocks operate solely based on the current input signals,
without any dependency on previous input or output states. They are indispensable for implementing various
logical operations and facilitating data processing in digital systems.
Here are some key combinational building blocks:
Logic
Gates:
-- :Logic gates are elementary components in digital circuits, performing basic
logical operations such as AND, OR, NOT, XOR, NAND, NOR, and XNOR.
-- :Each logic gate takes specific input(s) and produces an output based on a
predefined Boolean function.
-- :By combining different types of logic gates, designers can construct more
intricate logic circuits to fulfill specific requirements.
Multiplexors
A multiplexer is a type of combinational circuit designed with 2n input lines and a single output line. In
essence, it functions as a circuit with multiple inputs and a solitary output. Binary data from the input
lines is received and routed to the output line based on the values of the selection lines. Depending on the
configuration of the selection lines, one of the data inputs is connected to the output.
Unlike encoders and decoders, which have n selection lines and 2n input lines, multiplexers have
n selection lines and 2n input lines. Consequently, there are a total of 2N potential
combinations of inputs. Multiplexers are commonly referred to as Mux.
Various types of multiplexers include:
2-to-1 Multiplexer: This type of multiplexer has two input lines, one
output line, and one selection line. It selects one of the input lines based on the value of the selection
line.

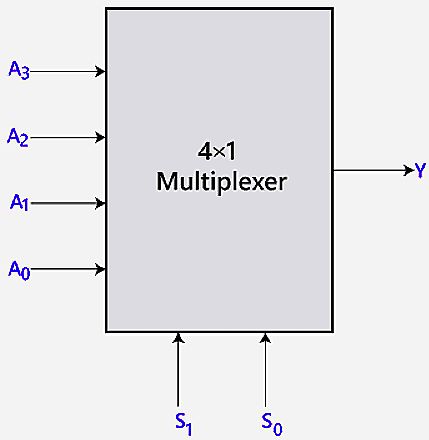

4-to-1 Multiplexer: With four input lines, one output line, and two
selection lines, this multiplexer selects one of the four input lines based on the combination of the
selection lines.
.jpeg)
8-to-1 Multiplexer: Featuring eight input lines, one output line, and three
selection lines, this multiplexer selects one of the eight input lines based on the combination of the
selection lines.
.jpeg)
16-to-1 Multiplexer: With sixteen input lines, one output line, and four
selection lines, this multiplexer selects one of the sixteen input lines based on the combination of the
selection lines.
.jpeg)
These are just a few examples of multiplexers, and there are multiplexers with even more input
lines
and selection lines for various applications.
decoder
In digital electronics, a decoder stands as a pivotal element, operating as a combinational logic circuit.
Its primary role is to transform binary data from input lines into a distinct set of output lines. Each
output line corresponds to a specific combination of the input signals, facilitating precise information
selection and control within digital systems.
The functionality of a decoder unfolds through several key steps:
1.Input Interpretation: At its core, a decoder possesses n
input lines, where n represents the number of bits in the binary input. These lines collectively
encode binary information.
2.Output Assignment: Conversely, the decoder boasts 2n output
lines, each linked to a unique binary combination of the input signals. This structure allows for exhaustive
coverage of all possible input scenarios.
3.Binary Conversion: The input lines, in essence, translate binary
numbers. For example, in a decoder featuring three input lines, these lines encode binary values ranging
from 000 to 111, encompassing the decimal range from 0 to 7.
4.Output Activation: Based on the binary number conveyed through the
input lines, the decoder activates the corresponding output line. For instance, if the inputs represent
binary 010, the output line associated with decimal 2 receives activation signals while others remain
dormant.
5.Enable Feature: Some decoder implementations integrate an enable
input line, dictating the operational state of the decoder. Activation of the enable line prompts the
decoder to process input signals, whereas deactivation leads to signal disregard.
6.Truth Table Representation: The behavior of a decoder can be
effectively captured through a truth table. This table delineates the interplay between input and output
signals, elucidating the decoder's operational logic comprehensively.
7.Versatile Applications: Decoders find utility across diverse
digital systems, fulfilling roles in memory systems, microprocessor address decoding, multiplexers, and
demultiplexers.
Consider, for example, a 3-to-8 decoder outfitted with three input lines and eight output lines. Such a
decoder facilitates the selection of a specific output line contingent upon the provided binary input. If,
for instance, the input registers as 101, the fifth output line becomes activated, while the remaining lines
lie dormant. Thus, decoders play a fundamental role in translating binary data into actionable control and
selection signals within digital circuitry.
.jpeg)
The logical expression of the term Y0 , Y1 , Y2 ,
Y3 , Y4 , Y5 , Y6 , and Y7 is as follows:
Y0 =A0 '.A1 '.A2 '
Y1 =A0 .A1 '.A2 '
Y2 =A0 '.A1 .A2 '
Y3 =A0 .A1 .A2 '
Y4 =A0 '.A1 '.A2
Y5 =A0 .A1 '.A2
Y6 =A0 '.A1 .A2
Y7 =A0 .A1 .A2

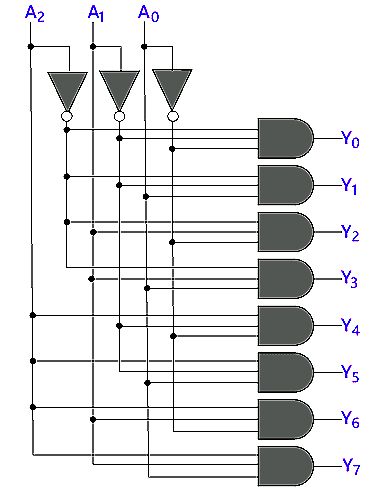

Logical circuit of the above expressions is given below:
.jpeg)
encoders
In digital electronics, encoders play a crucial role in converting multiple input signals into a compressed
output format, essentially performing the reverse function of decoders. Unlike decoders, which expand binary
data from multiple input lines into a larger set of output lines, encoders condense information from several
input lines into a smaller number of output lines.
.jpeg)
Here's a comprehensive overview of how encoders function and their applications:
1.Input Lines: Encoders, like decoders, feature input lines that accept
multiple input signals. These
input lines carry binary information that needs to be encoded.
2.Output Lines: The output lines of an encoder are fewer in number compared
to the input lines. This
compression allows for the representation of complex data using fewer bits, making transmission and
processing more efficient.
3.Encoding Process: Encoders interpret the binary information present on
the input lines and generate a
corresponding binary code on the output lines. This code effectively represents a condensed version of the
input data.
4.Priority Encoding: In certain scenarios, priority encoders are utilized
where only the
highest-priority active input is encoded. This feature ensures that critical information takes precedence in
the encoding process.
5.Applications: Encoders find widespread applications in various digital
systems, including data
transmission, communication protocols, and interface circuits. For instance, in telecommunications, encoders
are integral in compressing audio and video data for efficient transmission across networks.
6.Truth Table Representation: Similar to decoders, the operation of an
encoder can be succinctly
represented through a truth table. This table illustrates the mapping between input and output signals,
providing a clear understanding of the encoding process.
7.Parallel-to-Serial Conversion: Encoders are also instrumental in
parallel-to-serial conversion, where
a parallel stream of data is converted into a serial stream for transmission over a single channel.
For example, consider a 4-to-2 encoder with four input lines and two
output lines. Depending on the input
signals present, the encoder generates a corresponding binary code on the output lines, effectively
condensing the input data. This streamlined representation simplifies data processing and transmission
within digital systems.
.jpeg)
Overall, encoders play a pivotal role in converting complex data into a more manageable format, facilitating
efficient communication and processing in digital circuits and systems.
adders
An adder is a crucial component in digital electronics, pivotal for performing addition operations on binary
numbers. It serves as the cornerstone for arithmetic operations within digital circuits, microprocessors,
calculators, and various computational devices.
Here's a comprehensive explanation of how adders operate and their significance:
1.Binary Addition: Adders are designed to take two binary numbers, also
referred to as operands, as
input and generate their sum as output. The addition process operates independently on each bit of the
binary numbers.
2.Input Lines: Typically, adders consist of two sets of input lines, with
each set representing a bit
of the numbers to be added. For instance, a 4-bit adder would include eight input lines, four for each
operand.
3.Output Lines: The result of the addition operation is represented on the
output lines. The number of
output lines is determined by the number of input lines plus one, allowing for the potential carry-out from
the most significant bit.
4.Full Adder: At the heart of an adder lies the full adder, a fundamental
building block. It
incorporates three inputs: two bits to be added (designated as A and B) and a carry-in (referred to as Cin)
from the preceding lower-order stage. The full adder produces two outputs: the sum (denoted as S) of the
inputs and a carry-out (Cout) to the subsequent higher-order stage.
5.Ripple Carry Adder: Multi-bit adders, such as 4-bit or 8-bit adders,
employ multiple full adders
connected in sequence to form a ripple carry adder. The carry-out from each full adder functions as the
carry-in for the subsequent higher-order stage.
6.Carry Propagation: In a ripple carry adder, the carry-out from each stage
propagates to the next
higher-order stage. This propagation causes a delay in the final sum calculation, with the extent of delay
increasing with the number of bits in the adder, thereby impacting the overall speed of addition.
7.Applications: Adders play indispensable roles in arithmetic logic units
(ALUs) of microprocessors,
where they execute addition and other arithmetic operations. Additionally, they find applications in digital
signal processing (DSP) tasks and communication systems.
8.Parallel Prefix Adder: To mitigate carry propagation delay, advanced
adder designs like
carry-lookahead and carry-select adders are employed. These designs leverage parallel processing techniques
to precompute carry signals, resulting in accelerated addition operations.
For instance, consider a 4-bit ripple carry adder tasked with processing two 4-bit binary numbers. Each full
adder within the adder circuit computes the sum of two corresponding bits along with the carry-in from the
preceding stage, thereby generating the final sum output along with the carry-out for the subsequent stage.
Through the collaborative operation of these full adders, binary addition is efficiently executed within
digital systems.
half adder and full adder
In digital electronics, both half adders and full adders are foundational components essential for
performing binary addition operations. Although they share the purpose of facilitating addition, they vary
in complexity and functionality.
Half Adder:
- A half adder is the simplest form of an adder circuit, primarily utilized for adding two single-bit binary numbers.
- It yields two outputs: the sum (S) and the carry (C).
- The truth table for a half adder succinctly outlines its functionality:
- The sum (S) output signifies the least significant bit of the addition, while the carry (C) output
indicates whether a carry is required for the next higher-order bit.
- Notably, a half adder does not account for any carry-in from preceding stages, rendering it suitable solely for the addition of two single bits.
| A | B | S | C |
|---|---|---|---|
| 0 | 0 | 0 | 0 |
| 0 | 1 | 1 | 0 |
| 1 | 0 | 1 | 0 |
| 1 | 1 | 0 | 1 |
Full Adder: A full adder presents a more intricate adder circuit capable of considering two bits (A and B) for addition along with a carry-in (Cin) from the previous lower-order stage.
- It produces two outputs: the sum (S) and the carry-out (Cout) to the subsequent higher-order stage.
- The comprehensive truth table for a full adder reflects its expanded functionality due to the additional input:
- Full adders are indispensable for adding multi-bit numbers as they can accommodate carry-in from prior stages, thus facilitating addition across multiple bits.
| A | B | Cin | S | Cout |
|---|---|---|---|---|
| 0 | 0 | 0 | 0 | 0 |
| 0 | 0 | 1 | 1 | 0 |
| 0 | 1 | 0 | 1 | 0 |
| 0 | 1 | 1 | 0 | 1 |
| 1 | 0 | 0 | 1 | 0 |
| 1 | 0 | 1 | 0 | 1 |
| 1 | 1 | 0 | 0 | 1 |
| 1 | 1 | 1 | 1 | 1 |
To summarize, while both half adders and full adders contribute to binary addition operations, full adders are more versatile owing to their ability to handle carry-in from preceding stages, rendering them suitable for multi-bit addition circuits.
Subtractors
In digital electronics, a subtractor is a critical element used for performing subtraction operations on
binary numbers. It serves as the complement to an adder and is essential for arithmetic computations in
various digital systems, including microprocessors, calculators, and other computational devices.
Here's an original explanation of how subtractors operate and their significance:
1.Binary Subtraction: Subtractors are designed to take two binary numbers,
the minuend, and the
subtrahend, as input and generate their difference as output. During subtraction, each bit of the binary
numbers is processed independently.
2.Input Lines: Similar to adders, subtractors typically feature two sets of
input lines, with each set
representing a bit of the numbers to be subtracted. For instance, a 4-bit subtractor would include eight
input lines (four for each operand).
3.Output Lines: The result of the subtraction operation is represented on
the output lines. The number
of output lines equals the number of input lines, accommodating the resulting difference.
4.Full Subtractor: The fundamental unit of a subtractor is the full
subtractor. It incorporates three
inputs: two bits from the minuend (designated as A and B) and a borrow-in (Bin) from the preceding
lower-order stage. The full subtractor generates two outputs: the difference (D) of the inputs and a
borrow-out (Bout) to the subsequent higher-order stage.
5.Borrow Propagation: In multi-bit subtractors, multiple full subtractors
are interconnected to form a
ripple borrow subtractor. The borrow-out from each full subtractor serves as the borrow-in for the next
higher-order stage.
6.Applications: Subtractors play a pivotal role in arithmetic logic units
(ALUs) of microprocessors,
where they execute subtraction and other arithmetic operations. They are also employed in digital signal
processing (DSP) tasks and communication systems.
7.Truth Table Representation: The operation of a subtractor can be
effectively represented by a truth
table, elucidating the correspondence between input and output signals.
half subtractor and full subtractor
In digital electronics, both half subtractors and full subtractors are integral components utilized for
subtraction operations on binary numbers. They serve as fundamental elements for arithmetic processes in
digital circuits, microprocessors, calculators, and various computational devices.
Here's an original and concise explanation of both half subtractors and full subtractors:
Half Subtractor:
- A half subtractor constitutes a basic subtraction circuit engineered to subtract two single-bit binary numbers.
- Its outputs encompass the difference (D) and the borrow (B).
- The truth table for a half subtractor outlines its functionality:
- The difference (D) output represents the outcome of the subtraction, while the borrow (B) output indicates the necessity of borrowing from the subsequent higher-order bit during subtraction.
- A half subtractor disregards any borrow-in from preceding stages, rendering it suitable solely for subtracting two single bits.
| A | B | D | Bout |
|---|---|---|---|
| 0 | 0 | 0 | 0 |
| 0 | 1 | 1 | 0 |
| 1 | 0 | 1 | 1 |
| 1 | 1 | 0 | 0 |
Full Subtractor:
- A full subtractor embodies a more intricate subtraction circuit capable of subtracting two bits from the minuend alongside a borrow-in from the preceding lower-order stage.
- Its outputs encompass the difference (D) and the borrow-out (Bout) to the next higher-order stage.
- The truth table for a full subtractor is more elaborate due to the inclusion of an additional input:
- Full subtractors are indispensable for subtracting multi-bit binary numbers as they can accommodate borrow-in from prior stages, thereby facilitating subtraction across multiple bits.
| A | B | Bin | D | Bout |
|---|---|---|---|---|
| 0 | 0 | 0 | 0 | 0 |
| 0 | 0 | 1 | 1 | 0 |
| 0 | 1 | 0 | 1 | 1 |
| 0 | 1 | 1 | 0 | 0 |
| 1 | 0 | 0 | 1 | 0 |
| 1 | 0 | 1 | 0 | 0 |
| 1 | 1 | 0 | 0 | 0 |
| 1 | 1 | 1 | 1 | 0 |
Comments
Post a Comment
write your complements and complaints :)
